T-Bar Eye (2426-)

Art. 7066
Subject to errors and changes

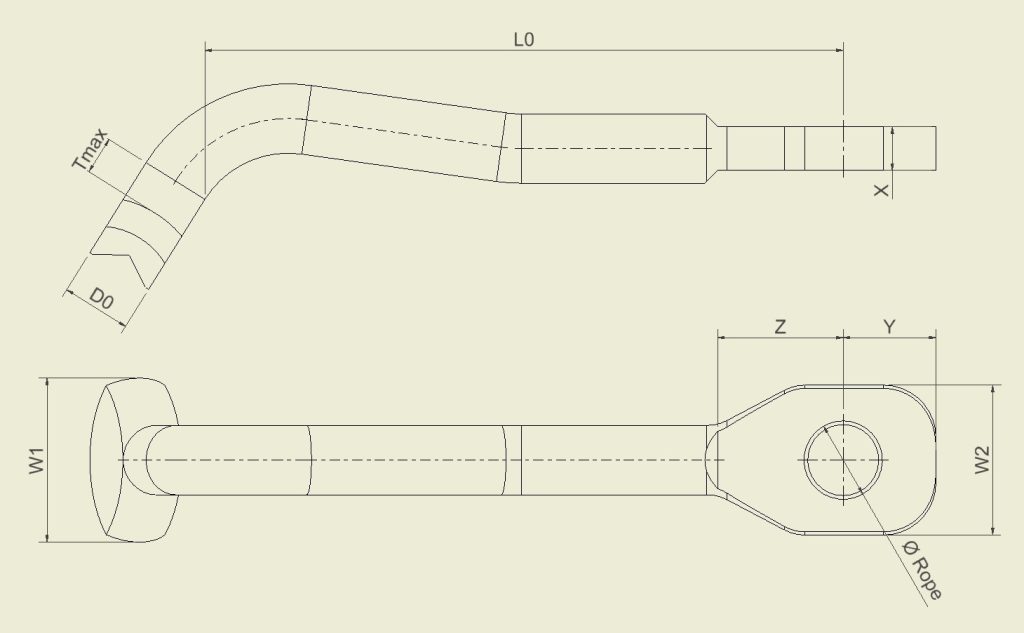

TECHNICAL DRAWING

DATA TABLE

 ArticleXBW1D0YTmaxL0ZØ pinSWLBLWeight
 No.mmmmmmmmmmmmmmmmmm[kg][kg][kg]
24260018414.5176.48.56.563-6.5--0.025
2426053261617.589871.5-7.9--0.042
24260316819.220.59111083.5-10.2--0.067
